A recessed box-type hose bibb assembly features a twenty-gauge stainless steel box measuring seven inches square with an adjustable wall clamp. The assembly includes a continuous stainless steel face hinge, a hinged locking cover, an integral vacuum breaker assembly, and a key. Water supply connections consist of a three-quarter-inch hose connection, a one-half-inch female national pipe thread inlet, and a three-quarter-inch male national pipe thread inlet. The finish must be verified with the architect.

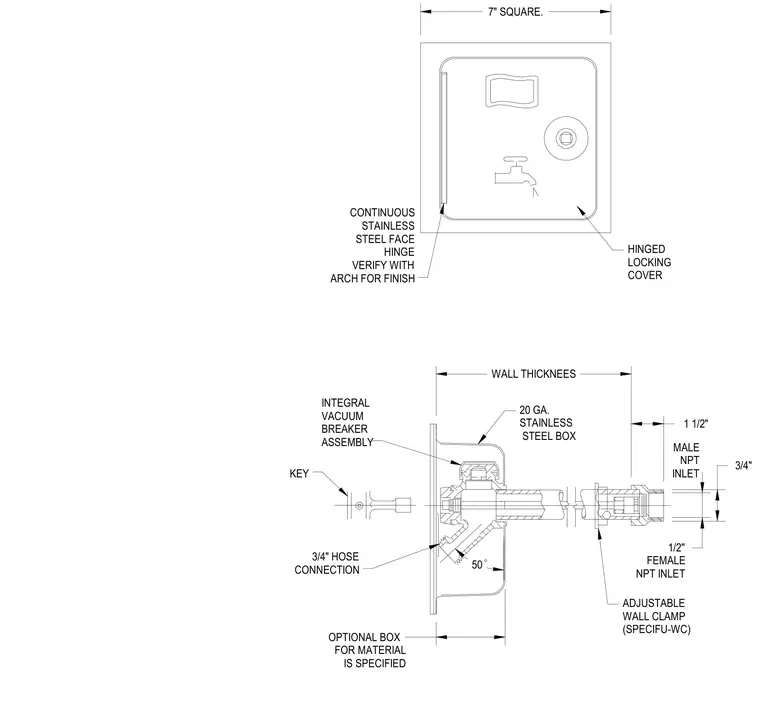

50 HINGED LOCKING COVER CONTINUOUS STAINLESS STEEL FACE HINGE VERIFY WITH ARCH FOR FINISH 7" SQUARE. KEY INTEGRAL VACUUM BREAKER ASSEMBLY WALL THICKNEES 3/4" HOSE CONNECTION 1 1/2" 1/2" FEMALE NPT INLET 3/4" MALE NPT INLET 20 GA. STAINLESS STEEL BOX ADJUSTABLE WALL CLAMP (SPECIFU-WC) OPTIONAL BOX FOR MATERIAL IS SPECIFIED
