Floor Sink and Indirect Drain Pipe Assembly

Materials

Elements

Facades / Cladding Floors / Slabs Vaults / Domes Drainage Connections / Plates Roof / Floor Openings

About this detail

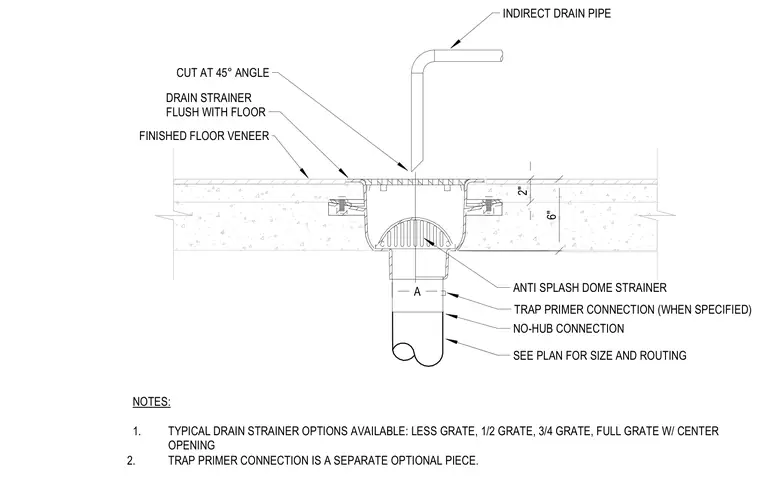

An indirect drain pipe terminates above the floor sink with a cut at a 45-degree angle. The drain strainer sits flush with the finished floor veneer. Below the strainer, an anti-splash dome strainer controls flow inside the body, which includes an optional trap primer connection and a no-hub connection matching the drain pipe sized per plan. Drainage options include less grate, half grate, three-quarter grate, and full grate with center opening.
