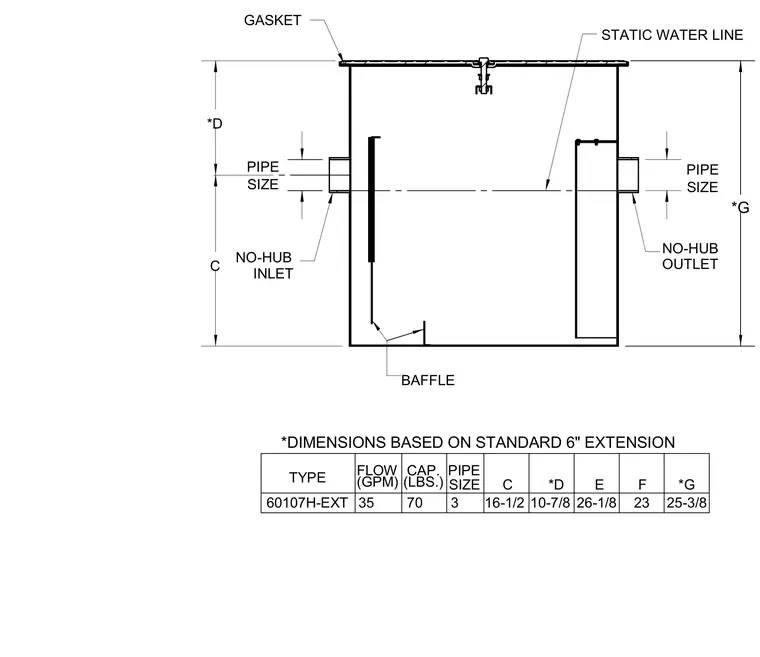

A grease interceptor features a no-hub inlet pipe, a no-hub outlet pipe, an internal baffle, a static water line, and a gasketed cover secured at the top. Dimensions and sizing parameters are provided for standard six-inch extension types with corresponding flow rates and capacities.
*DIMENSIONS BASED ON STANDARD 6" EXTENSION TYPE FLOW (GPM) CAP. (LBS.) PIPE SIZE 60107H-EXT 35 70 3 16-1/2 C 10-7/8 *D 26-1/8 E 23 F 25-3/8 *G *G GASKET STATIC WATER LINE *D PIPE SIZE C INLET NO-HUB PIPE SIZE NO-HUB OUTLET BAFFLE
