Plumbing · P-K4827

Electric Water Heater Installation Plumbing Detail

Materials

Elements

About this detail

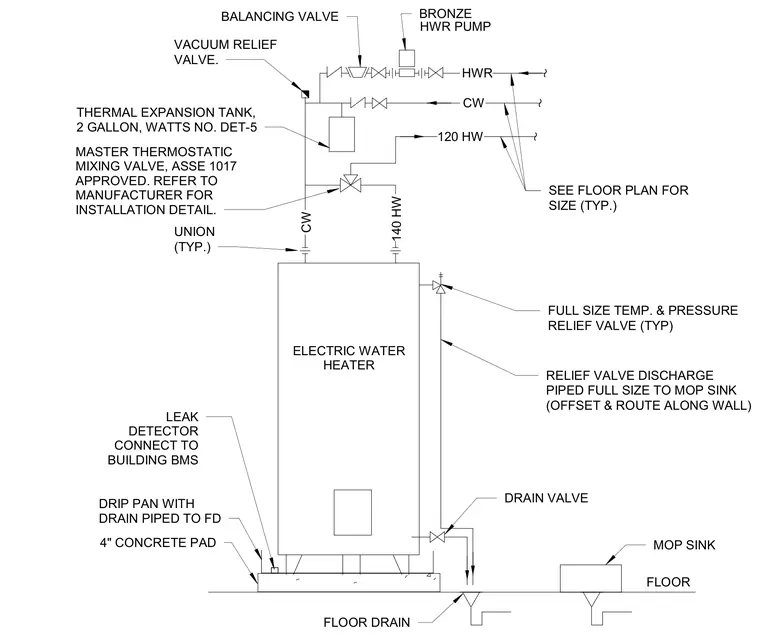

An electric water heater is mounted on a four-inch concrete pad equipped with a drip pan, a bronze drain piped to the floor drain, and a leak detector connected to the building management system. The cold water supply line includes a vacuum relief valve, a two-gallon thermal expansion tank, and a master thermostatic mixing valve approved per ASSE 1017. Unions are installed on the cold water and hot water lines for maintenance access. A temperature and pressure relief valve discharges full size to a mop sink with an offset routed along the wall. Balancing valves and a bronze hot water return pump are incorporated into the hot water return loop, with line sizing referenced from the floor plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
