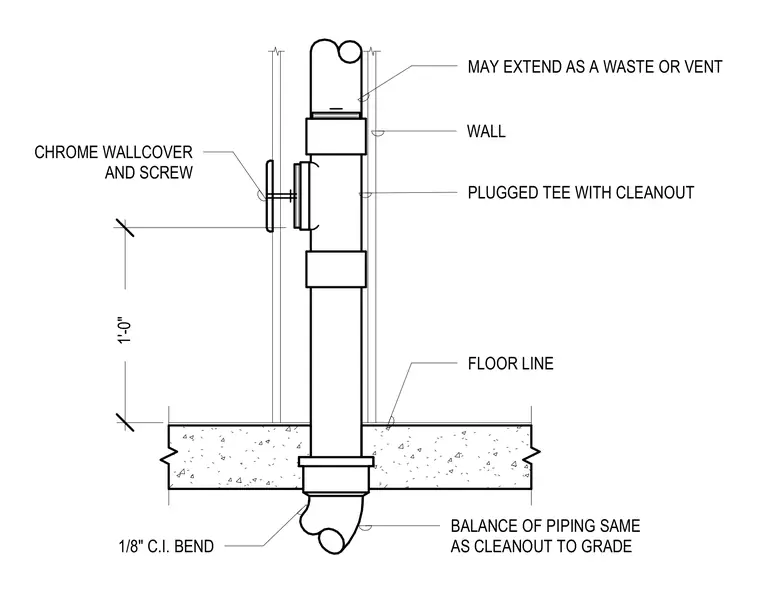

A cast iron vertical waste or vent stack extends through a floor line and features a plugged tee with a cleanout. A chrome wallcover and screw conceal the cleanout access within the wall plane. A one-foot vertical dimension establishes the cleanout height above the floor. Below the floor slab, a one-eighth bend connects to the balance of the piping leading to grade.
MAY EXTEND AS A WASTE OR VENT WALL PLUGGED TEE WITH CLEANOUT FLOOR LINE 1/8" C.I. BEND BALANCE OF PIPING SAME AS CLEANOUT TO GRADE CHROME WALLCOVER AND SCREW 1'-0"
