Emergency Eyewash and Shower Detail

Materials

Elements

About this detail

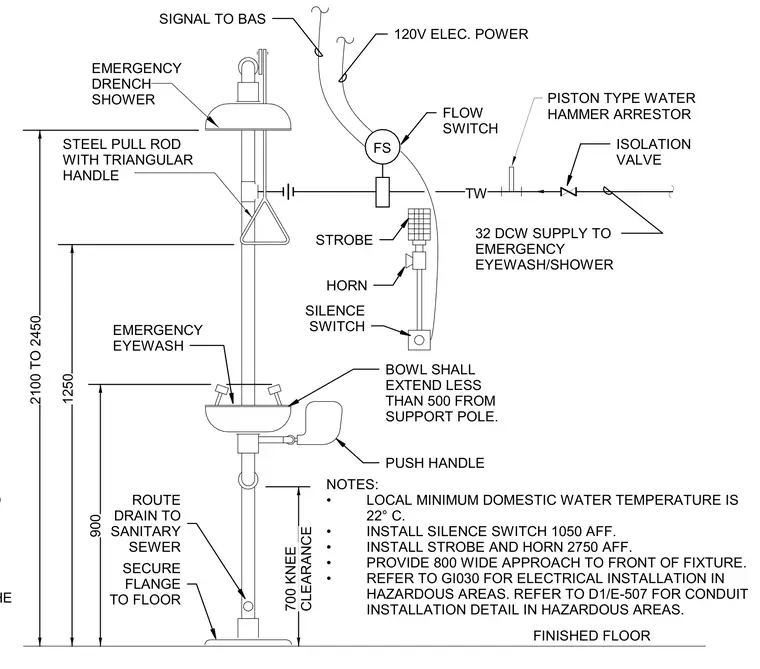

An emergency eyewash and drench shower unit mounts to the finished floor via a secure base flange. A 32 millimeter domestic cold water supply connects to the fixture through an isolation valve, a piston type water hammer arrestor, and a flow switch. The fixture features a steel pull rod with a triangular handle for the shower head and a push handle for the eyewash bowl, which extends less than 500 millimeters from the support pole. The assembly provides 700 millimeters of knee clearance above the floor and routes the drain directly to the sanitary sewer. Electrical connections include 120 volt power, a horn, a strobe, a silence switch installed at 1050 millimeters above finished floor, and a signal to the building automation system.
