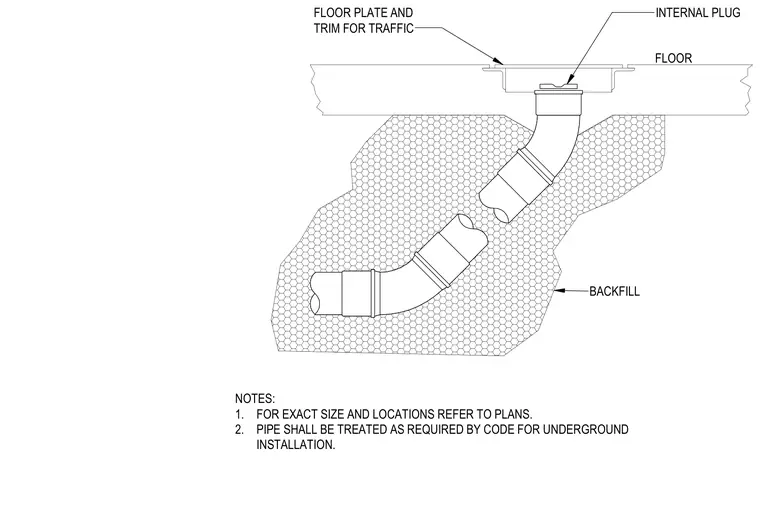

A floor cleanout assembly installed flush with the finished floor slab, featuring a traffic-rated floor plate and trim housing an internal plug. The cleanout connects to a below-grade piping system routed through compacted backfill. Pipe material and sizing are designated per project plumbing plans and local code requirements for underground installations.
NOTES: 1. FOR EXACT SIZE AND LOCATIONS REFER TO PLANS. 2. PIPE SHALL BE TREATED AS REQUIRED BY CODE FOR UNDERGROUND INSTALLATION. FLOOR PLATE AND TRIM FOR TRAFFIC INTERNAL PLUG BACKFILL FLOOR
