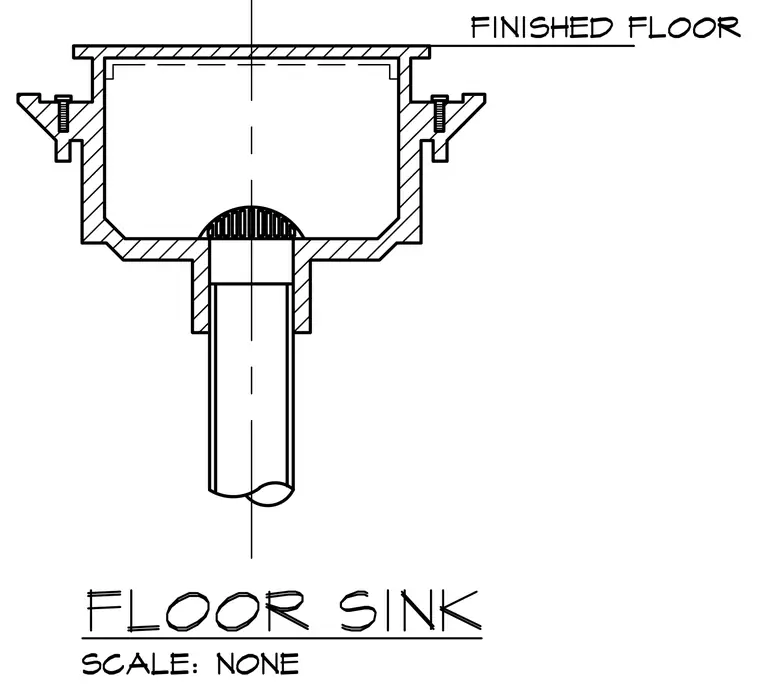

A recessed floor sink assembly is set flush with the finished floor level. The cast body features mounting flanges secured with machine screws on either side and an internal domed strainer protecting the outlet pipe. A vertical drain pipe connects directly to the bottom outlet of the sink body.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
