Natural Gas Pressure Regulator with Meter

Materials

Elements

About this detail

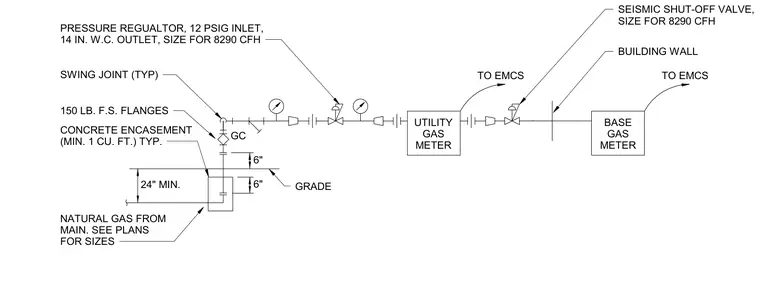

Natural gas feed from the main enters with a minimum twenty-four inches of depth below grade, featuring concrete encasement of at least one cubic foot and typical swing joints. The piping incorporates one hundred fifty pound forged steel flanges, a pressure regulator rated for twelve pounds per square inch gauge inlet and fourteen inches water column outlet sized for eight thousand two hundred ninety cubic feet per hour, and pressure gauges. Utility and base gas meters route lines to the energy management and control system, passing through a seismic shut-off valve before penetrating the building wall.
