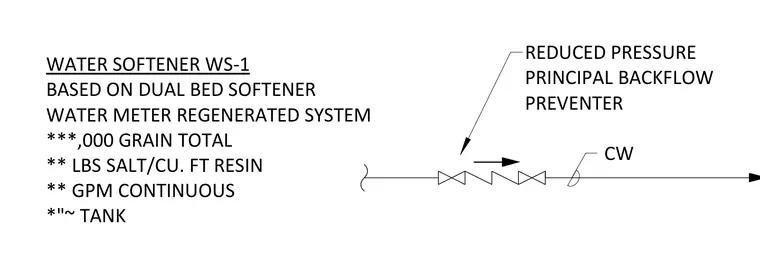

Cold water feeds into a dual bed water softener system featuring a water meter regenerated setup with specified grain capacity, salt dosage per cubic foot of resin, continuous flow rate, and tank sizing. Downstream piping incorporates a reduced pressure principle backflow preventer assembly.
CW WATER SOFTENER WS-1 BASED ON DUAL BED SOFTENER WATER METER REGENERATED SYSTEM ***,000 GRAIN TOTAL ** LBS SALT/CU. FT RESIN ** GPM CONTINUOUS *"~ TANK REDUCED PRESSURE PRINCIPAL BACKFLOW PREVENTER
