Plumbing · P-JD523

Concrete Anchor and Pipe Hanger Assemblies

Materials

Concrete Steel Stainless Steel Metal (misc.)

Elements

About this detail

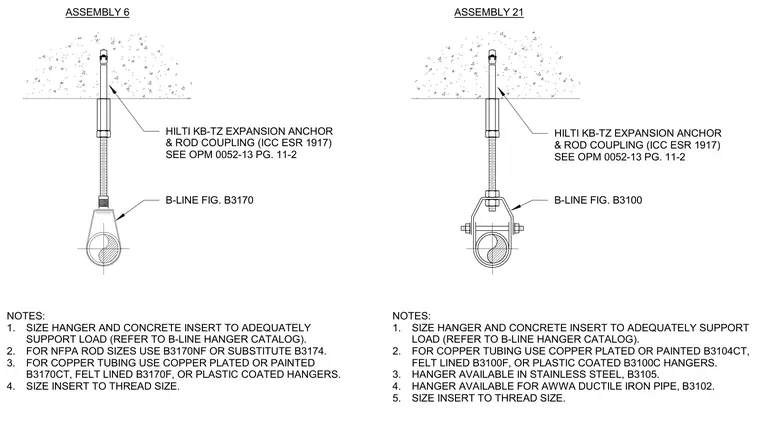

These assemblies utilize a Hilti KB-TZ expansion anchor and rod coupling set into a concrete overhead slab, connected to threaded hanger rods supporting pipe hangers. Assembly 6 uses a B-Line Fig. B3170 adjustable pipe hanger, while Assembly 21 uses a B-Line Fig. B3100 clevis hanger. Hangers and concrete inserts must be sized to adequately support the applied load per the manufacturer catalog, with specific material and coating options designated for copper tubing, stainless steel, and ductile iron pipe.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
