Plumbing · P-JCSFY

Vertical Horizontal Transitions

Elements

About this detail

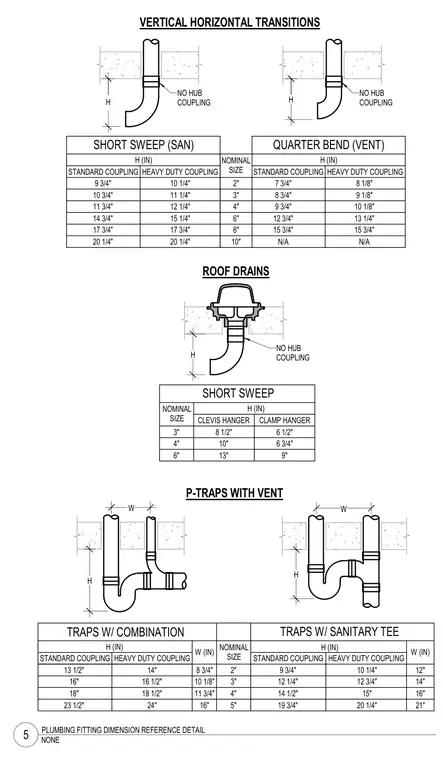

This plumbing fitting dimension reference detail provides layout and clearance dimensions for vertical to horizontal pipe transitions, roof drains, short sweeps, quarter bends, and p-traps with vents. Tables specify nominal pipe sizes ranging from two inches to ten inches paired with corresponding heights for standard couplings, heavy duty couplings, clevis hangers, and clamp hangers. No-hub couplings connect the drainage piping assemblies passing through structural elements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
