Parallel Pressure Reducing Valve Station Assembly

About this detail

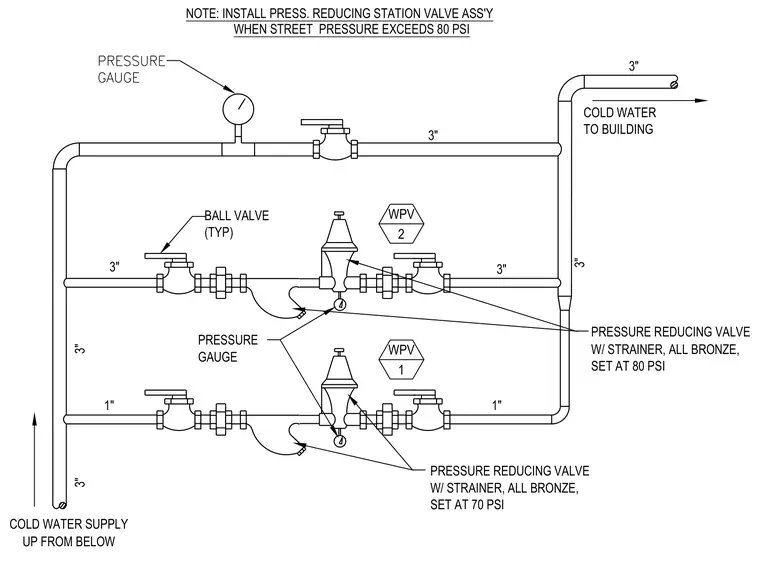

A parallel pressure reducing valve station connects to a three-inch cold water supply line coming up from below. The assembly features two bronze pressure reducing valves with integrated strainers, set at eighty pounds per square inch and seventy pounds per square inch respectively. Each reducing valve is isolated by typical ball valves and includes pressure gauges. The station is required when street water pressure exceeds eighty pounds per square inch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
