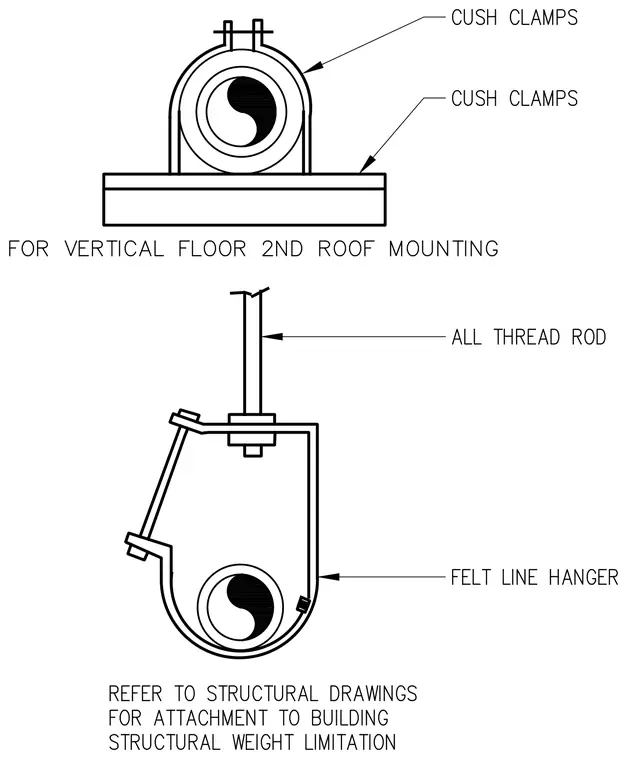

The assembly features a felt-lined J hanger suspended from an all-thread rod for pipe support, with structural attachment coordinated per structural drawings for weight limitations. A separate mounting configuration utilizes cush clamps secured for vertical floor or second roof mounting applications. The pipe rests within the cushioned or felt-lined clamp components to isolate vibration and prevent abrasion against the support hardware.
