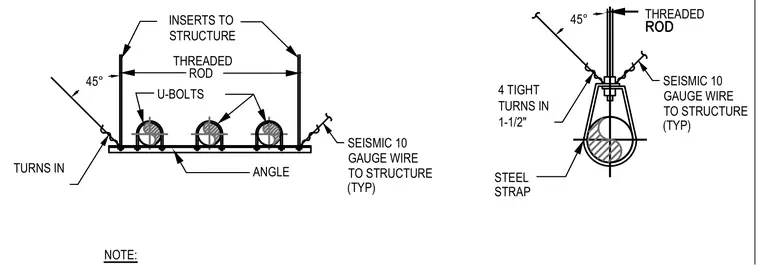

Suspended trapeze pipe hanger assembly secured to overhead structure via threaded rods anchored with inserts. Multiple pipes are supported on a steel angle using U-bolts. Seismic restraint is provided by 10-gauge wire braced at a 45-degree angle featuring four tight turns within 1-1/2 inches.
ANGLE ROD U-BOLTS STEEL THREADED STRAP TURNS IN GAUGE WIRE (TYP) TO STRUCTURE SEISMIC 10 45° THREADED TURNS IN 4 TIGHT 45° 1-1/2" GAUGE WIRE (TYP) TO STRUCTURE SEISMIC 10 NOTE: INSERTS TO STRUCTURE
