PRV Station and Cleanout Plumbing Details

Elements

About this detail

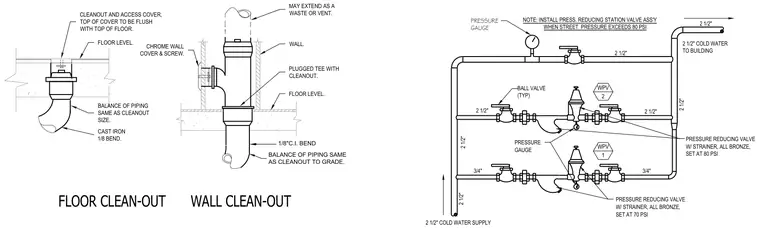

A pressure reducing station valve assembly is connected to a 2 1/2-inch cold water supply line, incorporating all-bronze pressure reducing valves with strainers set at 70 PSI and 80 PSI, pressure gauges, and typical ball valves. Floor and wall cleanouts feature cast iron 1/8 bends, plugged tees, and cleanout access covers flush with the finished floor level or fitted with a chrome wall cover and screw. The balance of piping matches the cleanout size, with vent or waste extensions as required.
