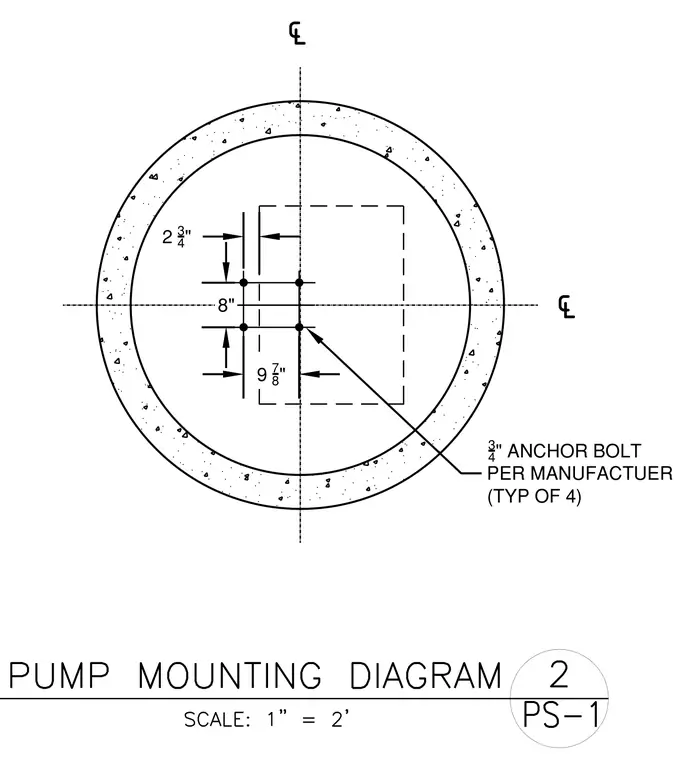

This plan detail shows a pump mounting pad with four three-quarter inch anchor bolts per manufacturer requirements. The anchor bolts are spaced with an eight-inch vertical dimension, two-and-three-quarter-inch offset, and nine-and-seven-eighths-inch horizontal dimension from centerlines.
