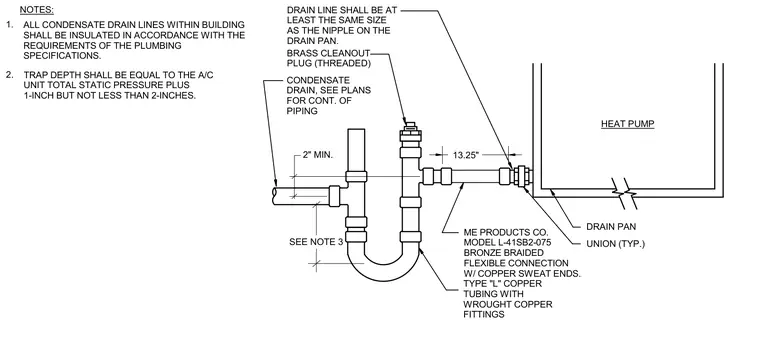

The heat pump drain pan connects via a typical union to an ME Products Co. model L-41SB2-075 bronze braided flexible connection with copper sweat ends. Type L copper tubing with wrought copper fittings routes the condensate through a properly sized trap and a threaded brass cleanout plug. All condensate drain lines within the building require insulation matching the plumbing specifications. Trap depth equals the air conditioning unit total static pressure plus one inch, maintaining a minimum depth of two inches. The drain line maintains a size at least equal to the nipple on the drain pan.
1. NOTES: 2. DRAIN LINE SHALL BE AT LEAST THE SAME SIZE AS THE NIPPLE ON THE DRAIN PAN. BRASS CLEANOUT PLUG (THREADED) CONDENSATE DRAIN, SEE PLANS FOR CONT. OF PIPING 2" MIN. SEE NOTE 3 13.25" HEAT PUMP DRAIN PAN UNION (TYP.) ME PRODUCTS CO. MODEL L-41SB2-075 BRONZE BRAIDED FLEXIBLE CONNECTION W/ COPPER SWEAT ENDS. TYPE "L" COPPER TUBING WITH WROUGHT COPPER FITTINGS ALL CONDENSATE DRAIN LINES WITHIN BUILDING SHALL BE INSULATED IN ACCORDANCE WITH THE REQUIREMENTS OF THE PLUMBING SPECIFICATIONS. TRAP DEPTH SHALL BE EQUAL TO THE A/C UNIT TOTAL STATIC PRESSURE PLUS 1-INCH BUT NOT LESS THAN 2-INCHES.
