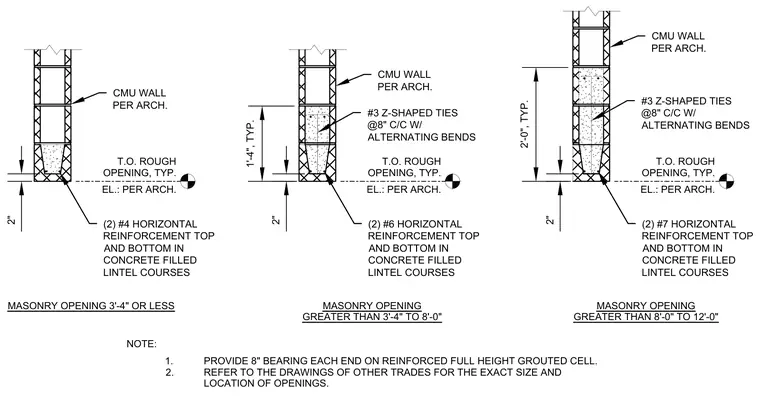

Masonry wall lintel details show concrete filled lintel courses over openings up to twelve feet wide within a concrete masonry unit wall per architectural plans. Openings of three feet four inches or less require two number four horizontal reinforcing bars at the top and bottom. Openings greater than three feet four inches up to eight feet require two number six horizontal reinforcing bars at the top and bottom with number three Z-shaped ties at eight inches on center with alternating bends. Openings greater than eight feet up to twelve feet require two number seven horizontal reinforcing bars at the top and bottom with number three Z-shaped ties at eight inches on center with alternating bends. Each end requires eight inches of bearing on a reinforced full height grouted cell.
NOTE: MASONRY OPENING 3'-4" OR LESS MASONRY OPENING GREATER THAN 3'-4" TO 8'-0" 1. PROVIDE 8" BEARING EACH END ON REINFORCED FULL HEIGHT GROUTED CELL. 2. REFER TO THE DRAWINGS OF OTHER TRADES FOR THE EXACT SIZE AND LOCATION OF OPENINGS. T.O. ROUGH OPENING, TYP. EL.: PER ARCH. 2" 2" 1'-4", TYP. 2" MASONRY OPENING GREATER THAN 8'-0" TO 12'-0" T.O. ROUGH OPENING, TYP. EL.: PER ARCH. 2'-0", TYP. T.O. ROUGH OPENING, TYP. EL.: PER ARCH. (2) #7 HORIZONTAL REINFORCEMENT TOP AND BOTTOM IN CONCRETE FILLED LINTEL COURSES (2) #6 HORIZONTAL REINFORCEMENT TOP AND BOTTOM IN CONCRETE FILLED LINTEL COURSES (2) #4 HORIZONTAL REINFORCEMENT TOP AND BOTTOM IN CONCRETE FILLED LINTEL COURSES CMU WALL PER ARCH. CMU WALL PER ARCH. CMU WALL PER ARCH. #3 Z-SHAPED TIES @8" C/C W/ ALTERNATING BENDS #3 Z-SHAPED TIES @8" C/C W/ ALTERNATING BENDS
