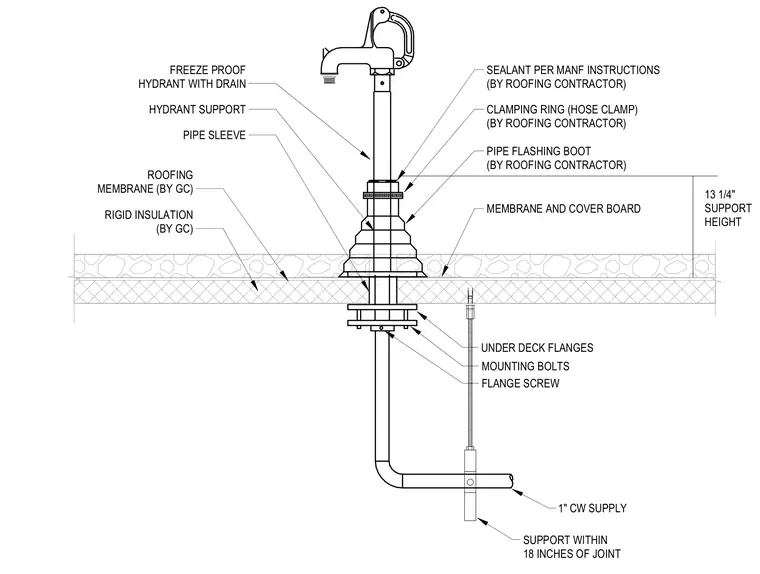

A freeze-proof hydrant with drain penetrates the roof assembly, passing through the roofing membrane, cover board, and rigid insulation. A pipe flashing boot surrounds the hydrant barrel and is secured at the top with a clamping ring and sealant applied per manufacturer instructions. Below the roof deck, under-deck flanges clamp the assembly using mounting bolts and flange screws, anchoring the hydrant and connecting to a one-inch cold water supply line. A pipe sleeve support is positioned within eighteen inches of the pipe joint to provide structural stability.
FREEZE PROOF HYDRANT WITH DRAIN ROOFING MEMBRANE (BY GC) RIGID INSULATION (BY GC) CLAMPING RING (HOSE CLAMP) (BY ROOFING CONTRACTOR) PIPE FLASHING BOOT (BY ROOFING CONTRACTOR) SEALANT PER MANF INSTRUCTIONS (BY ROOFING CONTRACTOR) MEMBRANE AND COVER BOARD PIPE SLEEVE SUPPORT WITHIN 18 INCHES OF JOINT 13 1/4" SUPPORT HEIGHT 1" CW SUPPLY HYDRANT SUPPORT UNDER DECK FLANGES MOUNTING BOLTS FLANGE SCREW
