Plumbing · P-HNYT2

Electric Water Heater with Mixing Valve Detail

Elements

About this detail

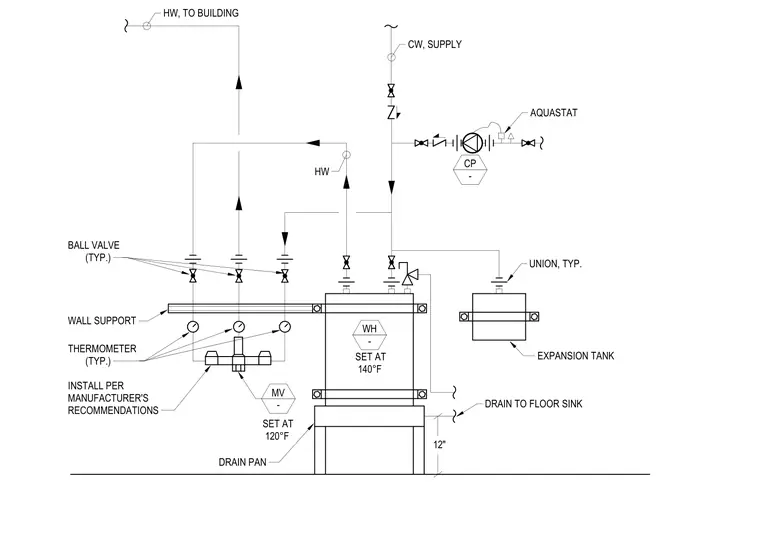

An electric water heater is set at 140 degrees Fahrenheit and mounted within a drain pan supported twelve inches above the floor with a drain directed to a floor sink. Cold water supply piping enters with typical unions, ball valves, and an expansion tank, while hot water exits through a mixing valve set at 120 degrees Fahrenheit for building distribution. A circulator pump with an aquastat connects to the system, and typical thermometers and wall supports are installed per manufacturer recommendations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
