Compressed Air Service Drop - Hangar

Materials

Elements

Walls Anchors / Embeds Connections / Plates

About this detail

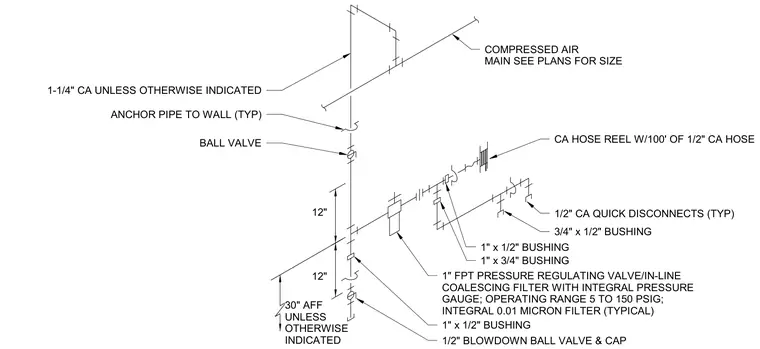

This compressed air service drop drops down from the main compressed air line sized per plans, using one and one-quarter inch piping unless otherwise indicated. The drop is anchored to the wall typically and terminates thirty inches above finished floor unless otherwise indicated. It incorporates a ball valve, a one-half inch blowdown ball valve with cap, and a one-inch female pipe thread pressure regulating valve with an in-line coalescing filter featuring an integral pressure gauge, operating range from five to one hundred fifty pounds per square inch gauge, and an integral zero point zero one micron filter. Various bushings including one-inch by three-quarter inch, one-inch by one-half inch, and three-quarter inch by one-half inch reduce the line to a compressed air hose reel with one hundred feet of one-half inch hose and one-half inch compressed air quick disconnects typically.
