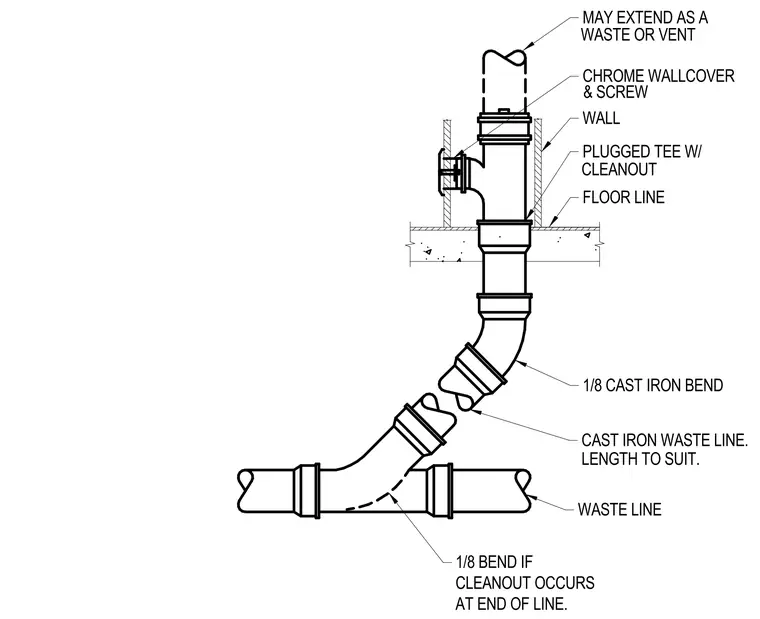

A cast iron waste line transitions through an eighth bend to a vertical stack containing a plugged tee with a cleanout. The cleanout extends through the wall and terminates with a chrome wall cover and screw. The vertical piping continues upward to serve as a waste or vent line.
& SCREW WASTE OR VENT CLEANOUT AT END OF LINE. LENGTH TO SUIT. 1/8 BEND IF CLEANOUT OCCURS WASTE LINE CAST IRON WASTE LINE. 1/8 CAST IRON BEND FLOOR LINE PLUGGED TEE W/ WALL MAY EXTEND AS A CHROME WALLCOVER
