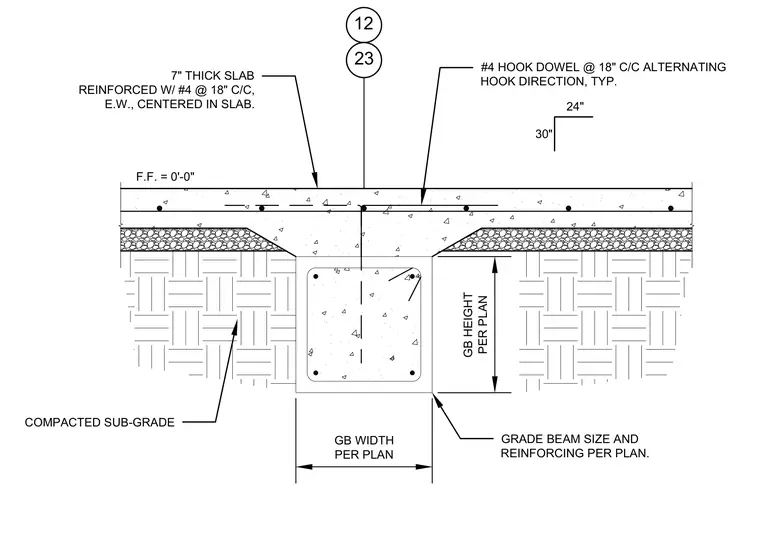

A reinforced concrete grade beam with width and height sized per plan supports a seven-inch thick concrete slab on grade over a compacted subgrade. The slab is reinforced with number four bars at eighteen inches center-to-center each way, centered within the slab thickness. Number four hook dowels are spaced at eighteen inches center-to-center with alternating hook directions, tying the slab to the grade beam.
F.F. = 0'-0" GRADE BEAM SIZE AND REINFORCING PER PLAN. GB WIDTH PER PLAN GB HEIGHT PER PLAN 23 COMPACTED SUB-GRADE 7" THICK SLAB REINFORCED W/ #4 @ 18" C/C, E.W., CENTERED IN SLAB. #4 HOOK DOWEL @ 18" C/C ALTERNATING HOOK DIRECTION, TYP. 24" 30" 12
