Sanitary Drainage Piping Cleanout and Wall Cover Detail

Materials

Elements

About this detail

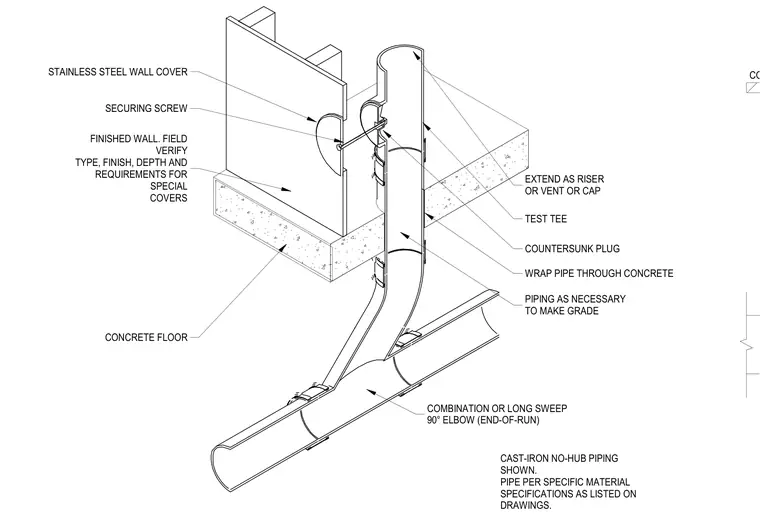

Cast-iron no-hub piping penetrates through a concrete floor slab with piping wrapped through the concrete and extended as a riser, vent, or cap. A test tee with a countersunk plug is installed for cleanout access, and a combination or long sweep ninety-degree elbow directs the end-of-run flow. A stainless steel wall cover is secured with a screw to the finished wall, requiring field verification of type, finish, depth, and special cover requirements.
