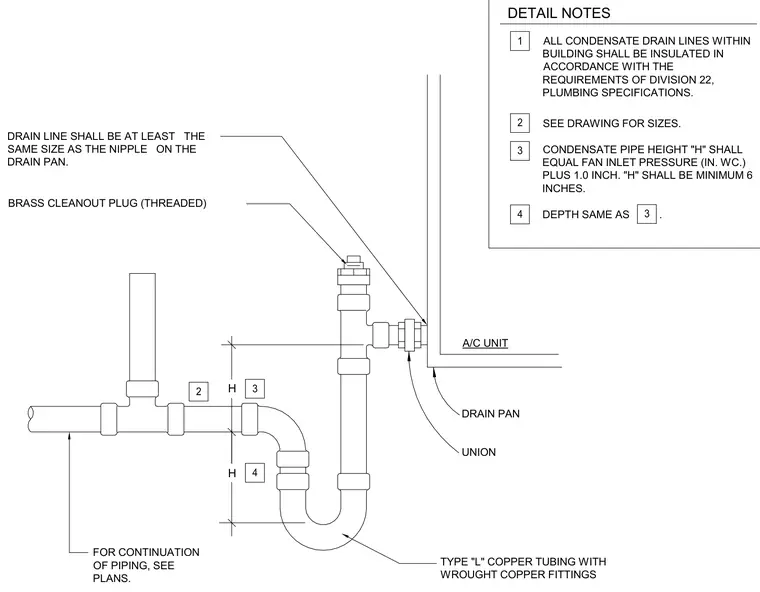

An air conditioner condensate drain line connects to the unit drain pan via a union and requires sizing at least equal to the drain pan nipple. The assembly incorporates type L copper tubing with wrought copper fittings and includes a threaded brass cleanout plug at the top of the vertical riser. Condensate pipe height "H" equals the fan inlet pressure in inches of water column plus one inch, with a six-inch minimum. All condensate drain lines within the building require insulation per plumbing specifications.
1 2 3 4 4 2 3 3 BRASS CLEANOUT PLUG (THREADED) A/C UNIT DRAIN LINE SHALL BE AT LEAST THE SAME SIZE AS THE NIPPLE ON THE DRAIN PAN. ALL CONDENSATE DRAIN LINES WITHIN BUILDING SHALL BE INSULATED IN ACCORDANCE WITH THE REQUIREMENTS OF DIVISION 22, PLUMBING SPECIFICATIONS. SEE DRAWING FOR SIZES. CONDENSATE PIPE HEIGHT "H" SHALL EQUAL FAN INLET PRESSURE (IN. WC.) PLUS 1.0 INCH. "H" SHALL BE MINIMUM 6 INCHES. DEPTH SAME AS . FOR CONTINUATION OF PIPING, SEE PLANS. TYPE "L" COPPER TUBING WITH WROUGHT COPPER FITTINGS DRAIN PAN UNION H H DETAIL NOTES
