A half-inch cold water supply line feeds a trap primer device positioned a minimum of twelve inches above the finished floor level. An isolation gate valve is installed on the main line for trap primer servicing, with support provided vertically as required. The trap primer connects to a floor drain featuring a deep seal floor trap. The system is designated for domestic water systems only.

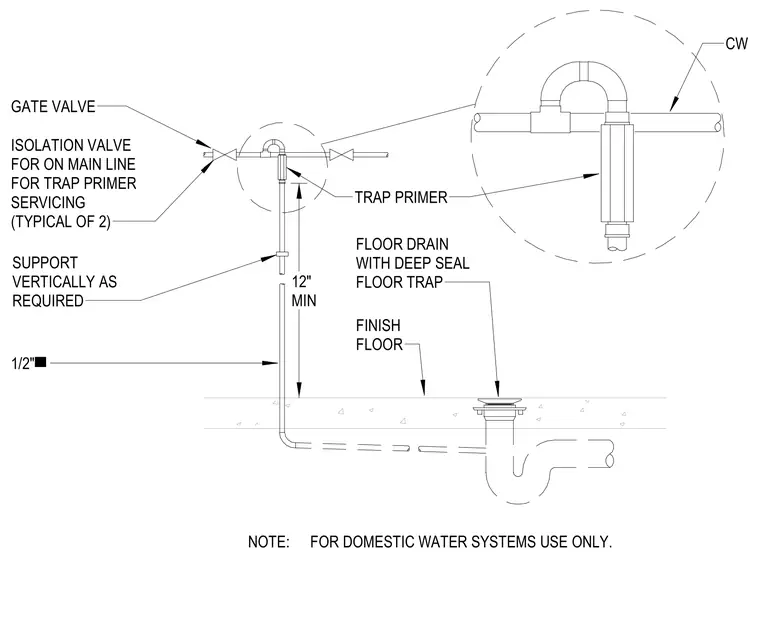

GATE VALVE 1/2" ⌀ TRAP PRIMER CW 12" MIN FINISH FLOOR FLOOR DRAIN WITH DEEP SEAL FLOOR TRAP ISOLATION VALVE FOR ON MAIN LINE FOR TRAP PRIMER SERVICING (TYPICAL OF 2) SUPPORT VERTICALLY AS REQUIRED NOTE: FOR DOMESTIC WATER SYSTEMS USE ONLY.
