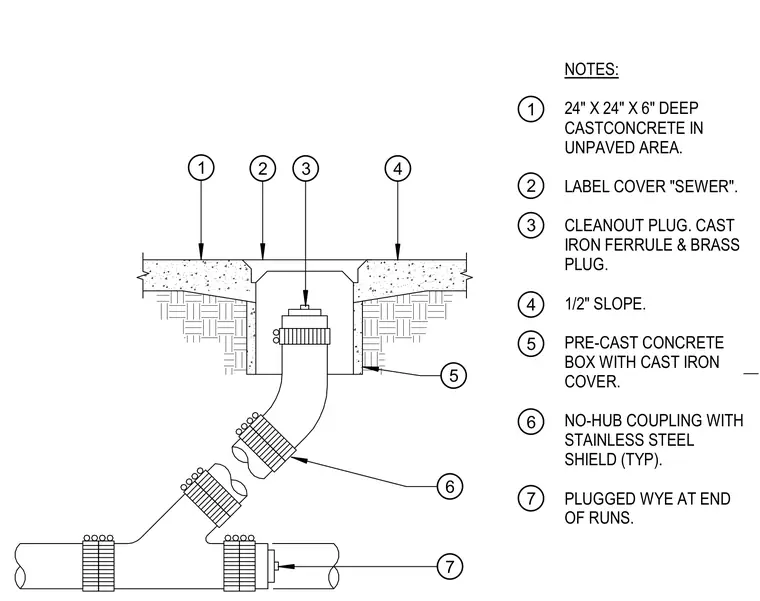

A floor cleanout assembly installed in an unpaved area within a twenty-four by twenty-four by six-inch deep precast concrete box with a cast iron cover labeled sewer. A cleanout plug consisting of a cast iron ferrule and brass plug terminates the vertical piping run. No-hub couplings with stainless steel shields connect the pipe fittings typically throughout the assembly. A plugged wye is installed at the end of the piping runs with a slope of one-half inch.
1 2 3 4 5 6 7 NOTES: 24" X 24" X 6" DEEP CASTCONCRETE IN UNPAVED AREA. LABEL COVER "SEWER". CLEANOUT PLUG. CAST IRON FERRULE & BRASS PLUG. 1/2" SLOPE. PRE-CAST CONCRETE BOX WITH CAST IRON COVER. NO-HUB COUPLING WITH STAINLESS STEEL SHIELD (TYP). PLUGGED WYE AT END OF RUNS. 1 2 3 4 5 6 7
