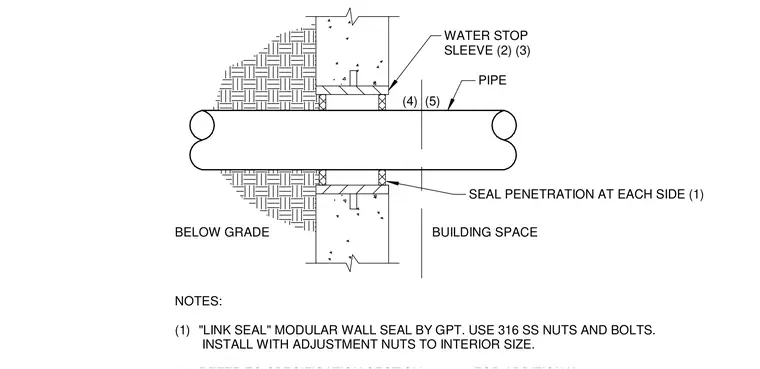

A pipe passes through a below-grade concrete foundation wall into an interior building space. A water stop sleeve is cast into the concrete wall to accommodate the pipe penetration. Modular wall seals are installed at each side of the penetration to provide a watertight seal against groundwater intrusion. The assembly uses stainless steel nuts and bolts with adjustment nuts set to the interior size as specified for modular wall seals.
PIPE SEAL PENETRATION AT EACH SIDE (1) WATER STOP SLEEVE (2) (3) BUILDING SPACE BELOW GRADE NOTES: (1) "LINK SEAL" MODULAR WALL SEAL BY GPT. USE 316 SS NUTS AND BOLTS. INSTALL WITH ADJUSTMENT NUTS TO INTERIOR SIZE. (4) (5)
