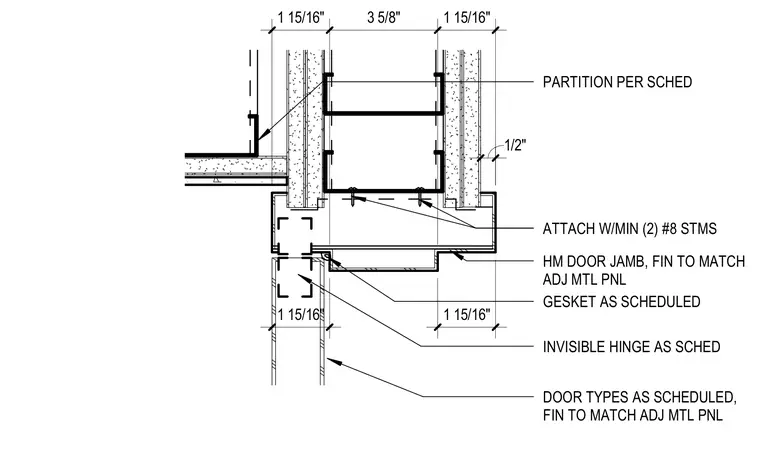

This plan detail shows a hollow metal door jamb attached to a three-and-five-eighths-inch partition using a minimum of two number eight sheet metal screws. The door frame has a finish matching adjacent metal panels and incorporates a gasket as scheduled. An invisible hinge is specified per schedule to hang the door, which also matches the adjacent metal panel finish.
1/2" 1 15/16" 1 15/16" INVISIBLE HINGE AS SCHED PARTITION PER SCHED DOOR TYPES AS SCHEDULED, FIN TO MATCH ADJ MTL PNL HM DOOR JAMB, FIN TO MATCH ADJ MTL PNL GESKET AS SCHEDULED ATTACH W/MIN (2) #8 STMS 1 15/16" 3 5/8" 1 15/16"
