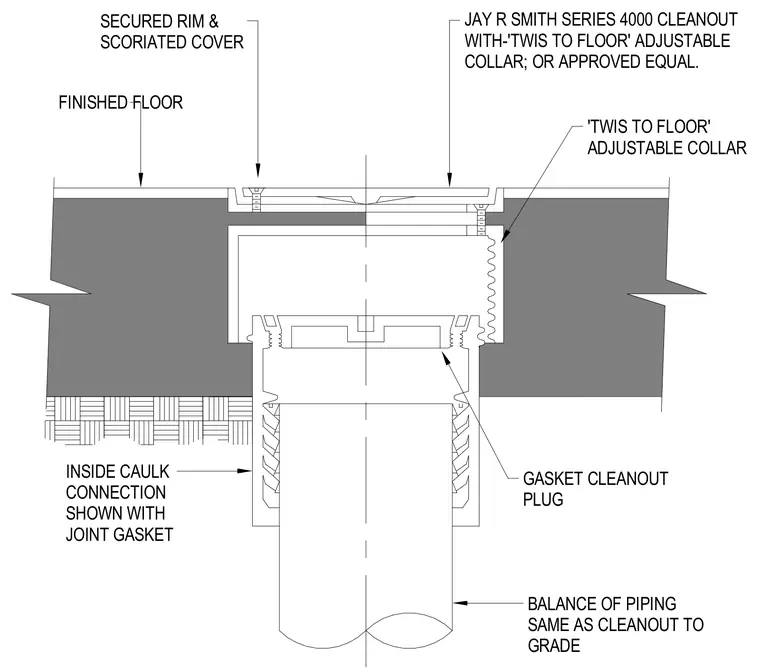

This plumbing detail shows a Jay R Smith Series 4000 floor cleanout assembly installed within a floor slab, featuring a twist-to-floor adjustable collar and a secured rim with a scoriated cover flush to the finished floor. The drain body connects to the piping below using an inside caulk connection with a joint gasket and a gasketed cleanout plug. The balance of the piping matches the cleanout to grade installation requirements.
INSIDE CAULK CONNECTION SHOWN WITH JOINT GASKET GASKET CLEANOUT PLUG BALANCE OF PIPING SAME AS CLEANOUT TO GRADE 'TWIS TO FLOOR' ADJUSTABLE COLLAR JAY R SMITH SERIES 4000 CLEANOUT WITH-'TWIS TO FLOOR' ADJUSTABLE COLLAR; OR APPROVED EQUAL. SECURED RIM & SCORIATED COVER FINISHED FLOOR
