Plumbing · P-H6WGF

Floor Drain Assembly with Flashing and Trap Seal

Materials

Elements

Floors / Slabs Waterproofing / Flashing Drainage Connections / Plates

About this detail

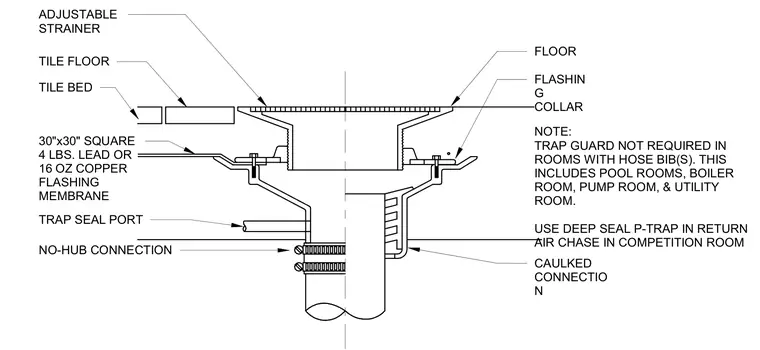

An adjustable strainer sits flush with the tile floor and tile bed, threading into a drain body supported by a flashing collar. A thirty-by-thirty-inch square four-pound lead or sixteen-ounce copper flashing membrane is clamped beneath the collar to waterproof the assembly. The drain outlet extends downward featuring a trap seal port and connects to the waste piping via a no-hub connection or caulked connection. A drawing note specifies that trap guards are not required in rooms with hose bibs such as pool rooms, boiler rooms, pump rooms, and utility rooms, and directs the use of a deep-seal P-trap in return air chases within competition rooms.
