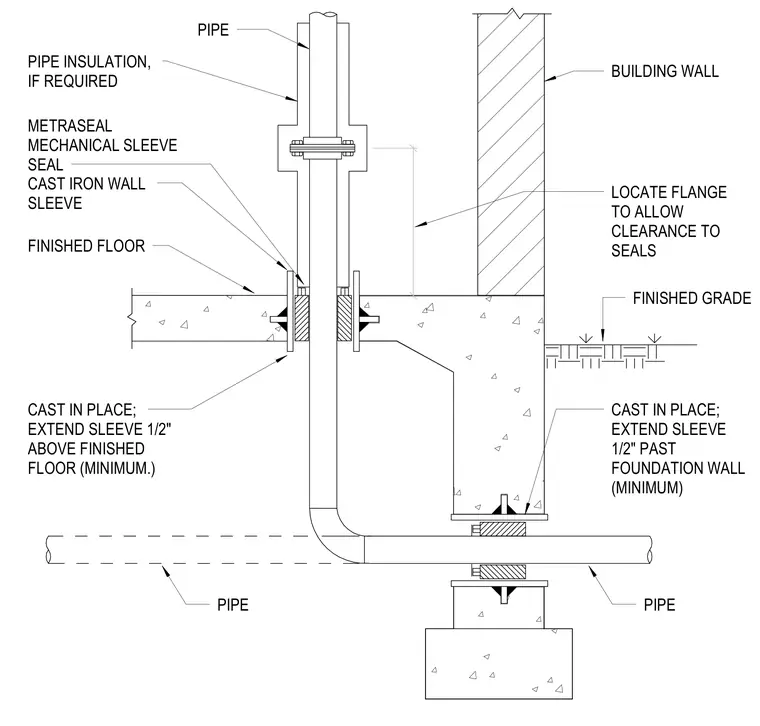

A pipe penetrates a cast-in-place concrete floor slab and a concrete building foundation wall through a cast iron wall sleeve and a Metraseal mechanical sleeve seal. The cast iron sleeve is cast in place and extended a minimum of one-half inch above the finished floor, as well as a minimum of one-half inch past the foundation wall. Pipe insulation is applied where required along the vertical pipe run. Flanges are positioned to provide adequate clearance for the mechanical seals.
METRASEAL MECHANICAL SLEEVE SEAL CAST IRON WALL SLEEVE FINISHED FLOOR CAST IN PLACE; EXTEND SLEEVE 1/2" ABOVE FINISHED FLOOR (MINIMUM.) PIPE PIPE FINISHED GRADE CAST IN PLACE; EXTEND SLEEVE 1/2" PAST FOUNDATION WALL (MINIMUM) LOCATE FLANGE TO ALLOW CLEARANCE TO SEALS PIPE PIPE INSULATION, IF REQUIRED BUILDING WALL
