Plumbing · P-H44YT

Trapeze Pipe Hanger

Materials

Steel Metal (misc.)

Elements

Walls Insulation Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection

About this detail

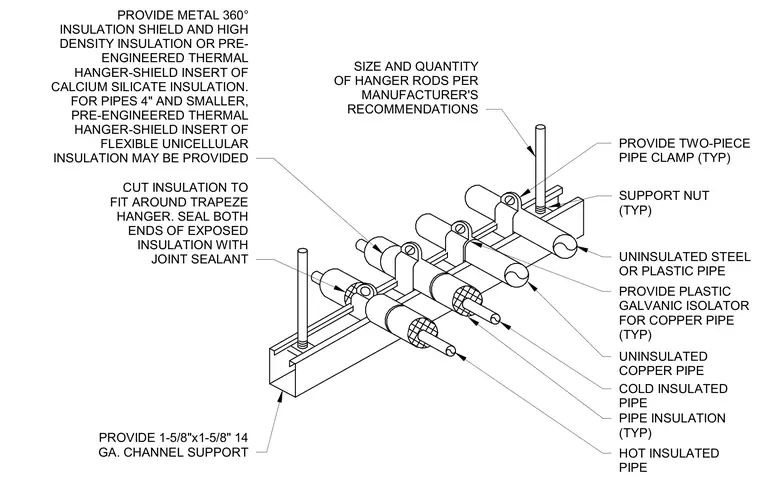

A 1-5/8 inch by 1-5/8 inch 14-gauge channel support is suspended by hanger rods sized per the manufacturer's recommendations and secured with typical support nuts. Two-piece pipe clamps secure uninsulated steel or plastic pipes, uninsulated copper pipes with plastic galvanic isolators, and hot or cold insulated pipes to the channel. For insulated pipes, the insulation is cut to fit around the trapeze hanger, and both ends of the exposed insulation are sealed with joint sealant. Metal 360-degree insulation shields with high-density insulation, pre-engineered thermal hanger-shield inserts of calcium silicate, or flexible unicellular insulation for pipes 4 inches and smaller are provided at the support points.
