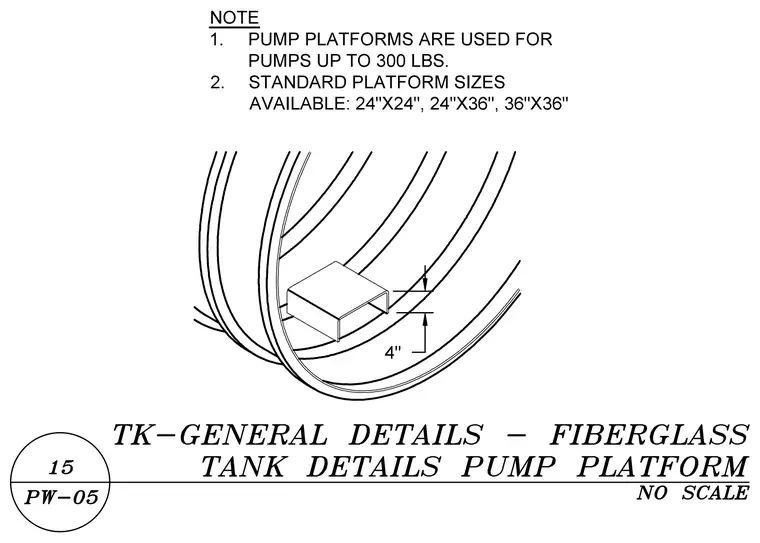

A rectangular pump platform is mounted inside a cylindrical fiberglass tank for pumps up to three hundred pounds. Standard platform sizes available are twenty-four by twenty-four inches, twenty-four by thirty-six inches, and thirty-six by thirty-six inches. The platform is positioned with a four-inch vertical clearance dimension noted on the curved tank wall.
