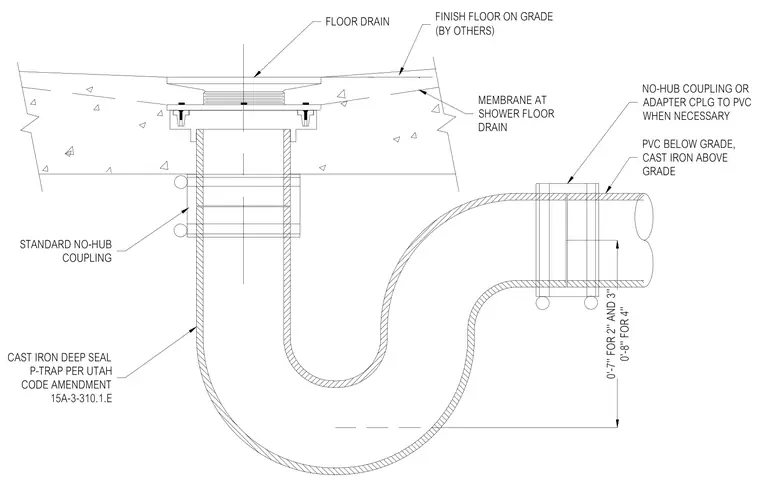

A floor drain is set within a finish floor on grade with a waterproof membrane located beneath the shower floor drain. The drain connects to a cast iron deep seal p-trap complying with Utah code amendment 15A-3-310.1.E, maintaining a depth of seven inches for two-inch and three-inch pipes and eight inches for four-inch pipes. Standard no-hub couplings join the vertical drop and horizontal run. Piping transitions from PVC below grade to cast iron above grade using no-hub couplings or adapter couplings when necessary.
NO-HUB COUPLING OR ADAPTER CPLG TO PVC WHEN NECESSARY PVC BELOW GRADE, CAST IRON ABOVE GRADE 0'-7'' FOR 2'' AND 3'' 0'-8'' FOR 4'' CAST IRON DEEP SEAL P-TRAP PER UTAH CODE AMENDMENT 15A-3-310.1.E STANDARD NO-HUB COUPLING MEMBRANE AT SHOWER FLOOR DRAIN FINISH FLOOR ON GRADE (BY OTHERS) FLOOR DRAIN
