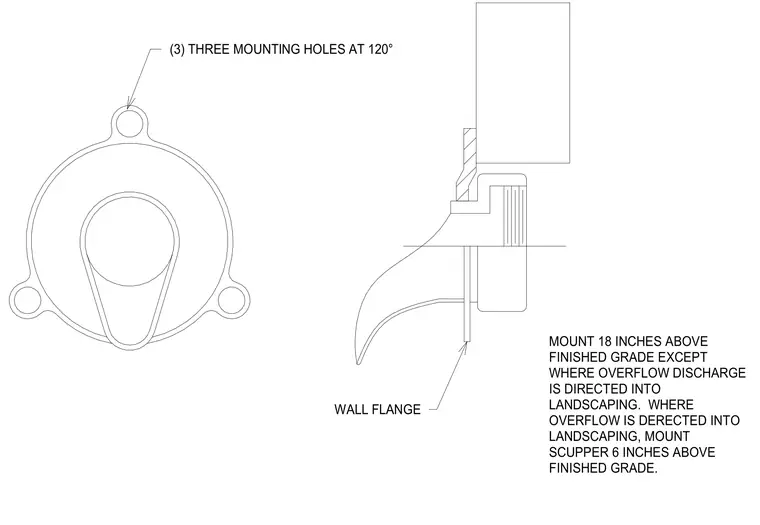

This assembly consists of a wall scupper featuring a circular flange with three mounting holes spaced at 120 degrees for secure attachment to the building exterior. The scupper includes a two-inch high internal water dam to manage overflow. The unit is designed to be mounted 18 inches above finished grade, unless the overflow discharge is directed into landscaping, in which case the mounting height is reduced to 6 inches above finished grade.
Text on the drawing
(3) THREE MOUNTING HOLES AT 120° WALL FLANGE MOUNT 18 INCHES ABOVE FINISHED GRADE EXCEPT WHERE OVERFLOW DISCHARGE IS DIRECTED INTO LANDSCAPING. WHERE OVERFLOW IS DERECTED INTO LANDSCAPING, MOUNT SCUPPER 6 INCHES ABOVE FINISHED GRADE. 2" HIGH WATER DAM NO SCALE 4 22 13 00 WALL CLEANOUT NO SCALE 5 22 14 00 WALL SCUPPER
