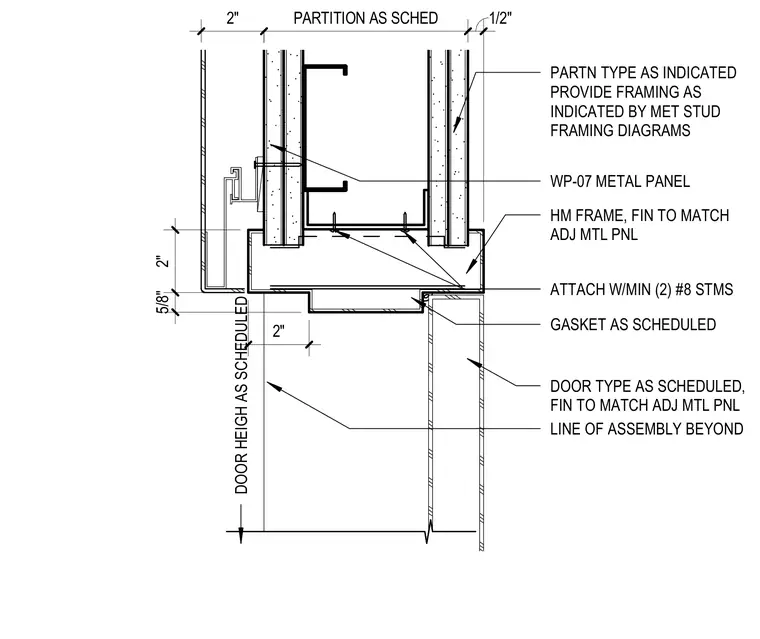

A hollow metal frame is secured to the partition head with a minimum of two number 8 sheet metal screws, matching the adjacent metal panel finish. The partition framing consists of metal studs as indicated in framing diagrams, clad with WP-07 metal panels on the exterior face. A gasket is installed as scheduled at the door head interface. The door leaf meets the frame assembly at the specified height, with finishes coordinated with the adjacent metal panel system.
WP-07 METAL PANEL PARTN TYPE AS INDICATED PROVIDE FRAMING AS INDICATED BY MET STUD FRAMING DIAGRAMS GASKET AS SCHEDULED DOOR TYPE AS SCHEDULED, FIN TO MATCH ADJ MTL PNL LINE OF ASSEMBLY BEYOND DOOR HEIGH AS SCHEDULED HM FRAME, FIN TO MATCH ADJ MTL PNL ATTACH W/MIN (2) #8 STMS 2" PARTITION AS SCHED 1/2" 2" 5/8" 2"
