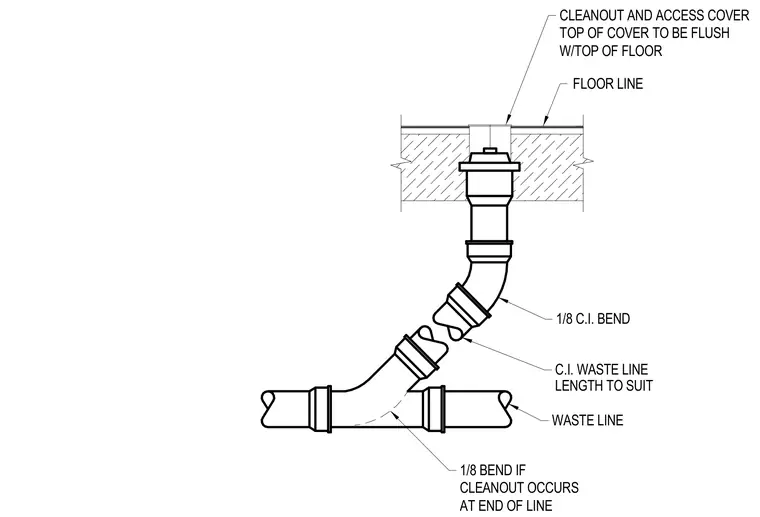

A cast iron waste line runs horizontally with an eighth bend transitioning upward to a cleanout and access cover set flush with the floor line. The length of the waste line is sized to suit field conditions, featuring a cast iron eighth bend and an optional bend at the end of the line if a cleanout occurs. The access cover sits level with the finished floor surface for maintenance access.
W/TOP OF FLOOR CLEANOUT AND ACCESS COVER TOP OF COVER TO BE FLUSH FLOOR LINE AT END OF LINE LENGTH TO SUIT 1/8 BEND IF CLEANOUT OCCURS WASTE LINE C.I. WASTE LINE 1/8 C.I. BEND
