Structural · P-GKMQT

Concrete Slab Pour Back Strip and Grade Beam Foundation Detail

Materials

Concrete Reinforced Concrete Steel

Elements

Beams Walls Roofs Floors / Slabs Foundations / Footings Drainage Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

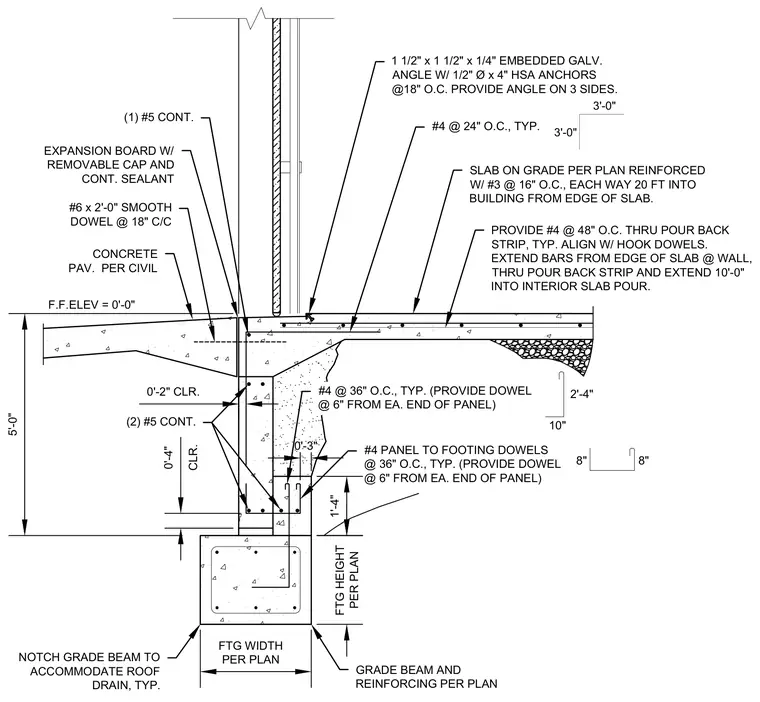

A reinforced concrete grade beam supports a slab on grade and wall panel assembly. A pour back strip is detailed with number four reinforcing bars at forty-eight inches on center, extending ten feet into the interior slab pour and aligning with hook dowels. The grade beam features continuous number five reinforcing bars and number four panel-to-footing dowels spaced at thirty-six inches on center. An embedded galvanized angle measuring one and one-half by one and one-half by one-quarter inches is anchored with one-half-inch diameter by four-inch HSA anchors at eighteen inches on center. An expansion board with a removable cap and continuous sealant separates the exterior concrete pavement from the interior slab edge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
