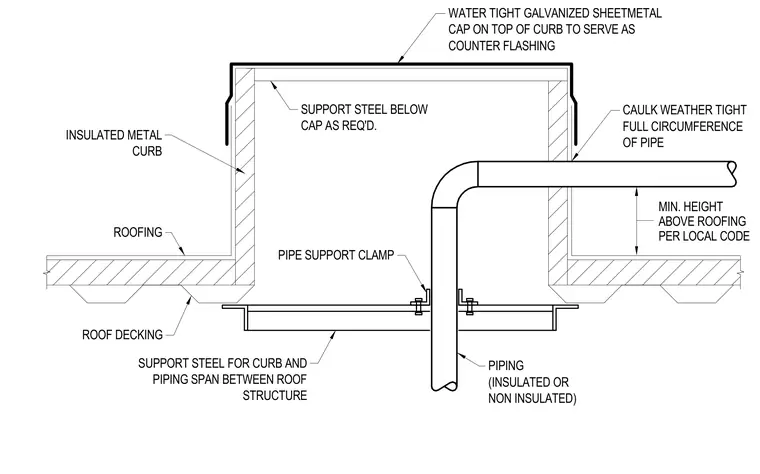

An insulated metal curb sits atop the roof decking and roofing assembly, supported by structural steel spanning between the main roof structure. A galvanized sheet metal cap serves as counter flashing on top of the curb, backed by support steel as required. The piping passes vertically through the opening, secured by a pipe support clamp attached to the underlying structural framing. A weathertight caulk bead seals the full circumference of the pipe where it exits the curb, maintaining the required minimum height above the roofing per local code.
MIN. HEIGHT ABOVE ROOFING PER LOCAL CODE OF PIPE FULL CIRCUMFERENCE CAULK WEATHER TIGHT NON INSULATED) (INSULATED OR PIPING STRUCTURE PIPING SPAN BETWEEN ROOF SUPPORT STEEL FOR CURB AND ROOF DECKING PIPE SUPPORT CLAMP ROOFING CURB INSULATED METAL CAP AS REQ'D. SUPPORT STEEL BELOW COUNTER FLASHING CAP ON TOP OF CURB TO SERVE AS WATER TIGHT GALVANIZED SHEETMETAL
