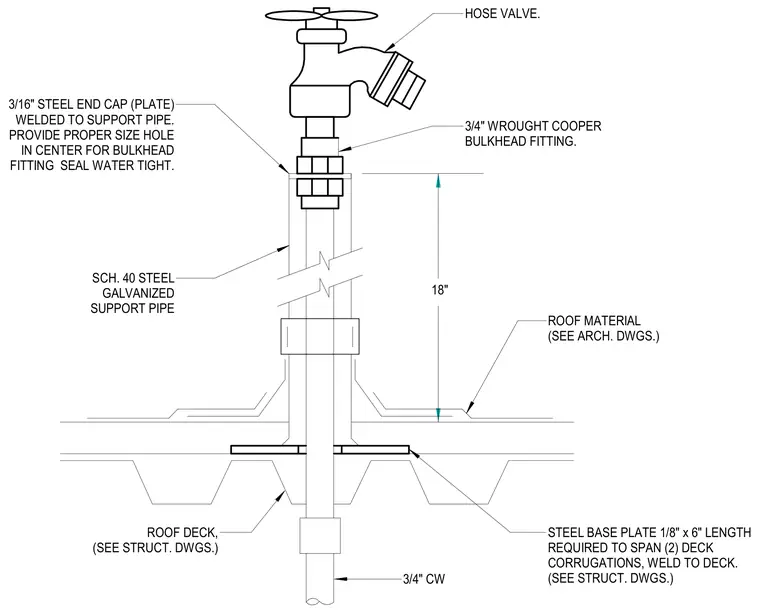

A schedule 40 steel galvanized support pipe penetrates the roof deck and extends upwards with a hose valve mounted at the top. The support pipe is secured to the roof deck by a one-eighth inch by six inch steel base plate sized to span two deck corrugations and welded directly to the deck. A three-sixteenth inch steel end cap plate is welded to the top of the support pipe with a centrally located hole for a three-quarter inch wrought copper bulkhead fitting, sealed watertight. The hose valve connects to the bulkhead fitting to supply cold water.
HOSE VALVE. 3/4" WROUGHT COOPER BULKHEAD FITTING. 18" ROOF MATERIAL (SEE ARCH. DWGS.) STEEL BASE PLATE 1/8" x 6" LENGTH REQUIRED TO SPAN (2) DECK CORRUGATIONS, WELD TO DECK. (SEE STRUCT. DWGS.) 3/4" CW 3/16" STEEL END CAP (PLATE) WELDED TO SUPPORT PIPE. PROVIDE PROPER SIZE HOLE IN CENTER FOR BULKHEAD FITTING SEAL WATER TIGHT. SCH. 40 STEEL GALVANIZED SUPPORT PIPE ROOF DECK, (SEE STRUCT. DWGS.)
