An adjustable floor drain head is set flush with the finished concrete floor, which slopes toward the drain. A safe pan is flashed into the clamping collar per specifications. The drain connects to a deep seal trap using a caulked outlet type connection, with the piping routed tight to the structure. A trap primer is included where called out on the drawings, with a cap fitting provided if not required.

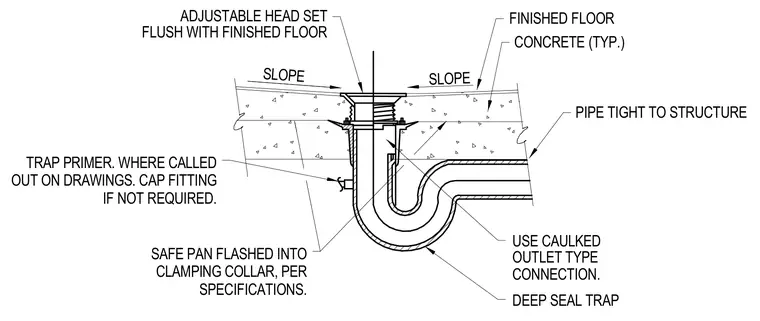

FINISHED FLOOR CONCRETE (TYP.) SLOPE USE CAULKED CONNECTION. OUTLET TYPE ADJUSTABLE HEAD SET FLUSH WITH FINISHED FLOOR SLOPE SAFE PAN FLASHED INTO CLAMPING COLLAR, PER SPECIFICATIONS. TRAP PRIMER. WHERE CALLED OUT ON DRAWINGS. CAP FITTING IF NOT REQUIRED. DEEP SEAL TRAP PIPE TIGHT TO STRUCTURE
