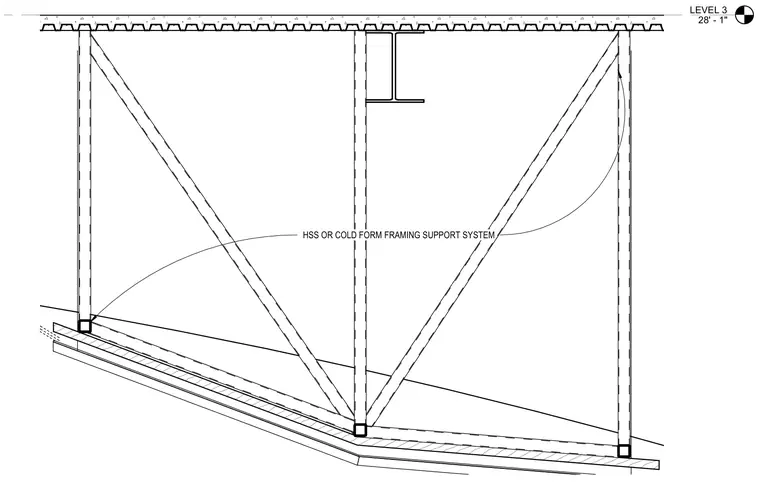

Suspended ceiling system supported by a hollow structural section or cold-formed framing support system hanging from the level three concrete-filled metal deck at elevation twenty-eight feet one inch. Vertical and diagonal framing members support the lower ceiling plane below. An intermediate structural steel beam supports the upper assembly. The layout provides structural support for specialized interior ceiling configurations.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
