Open/Closed/Full Sign Specification and Details

Materials

Elements

About this detail

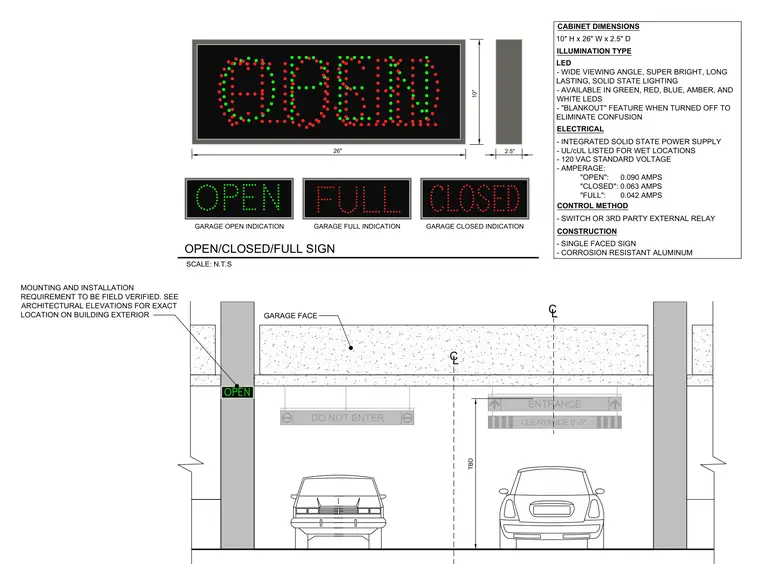

An open, closed, and full LED sign measures 10 inches high by 26 inches wide by 2.5 inches deep with a corrosion-resistant aluminum cabinet construction. The solid-state lighting system operates at 120 volts alternating current with integrated power supply and features a blankout capability when turned off. Amperage draws vary by message with open at 0.090 amps, closed at 0.063 amps, and full at 0.042 amps. Control is managed via switch or third-party external relay, and the unit is UL or cUL listed for wet locations. Mounting requirements and exact placement on the building exterior at the garage entrance face must be field verified against architectural elevations.
