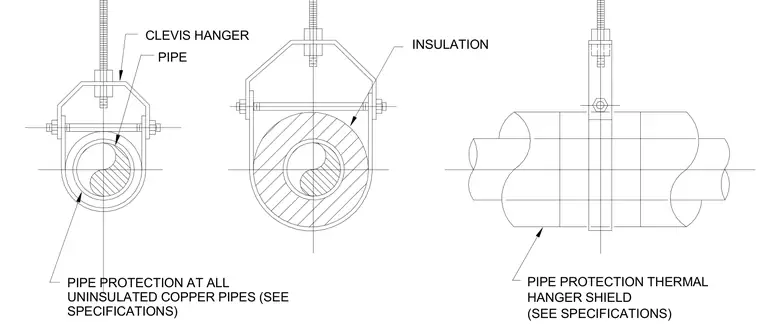

Suspended clevis hangers support uninsulated copper piping and insulated piping systems from threaded rods. Pipe protection shields are installed at all uninsulated copper pipes, while thermal pipe protection hanger shields protect insulated lines per specifications. Nuts secure the clevis hanger assembly to the vertical threaded rod support.
(SEE SPECIFICATIONS) HANGER SHIELD PIPE PROTECTION THERMAL PIPE CLEVIS HANGER INSULATION PIPE PROTECTION AT ALL UNINSULATED COPPER PIPES (SEE SPECIFICATIONS)
