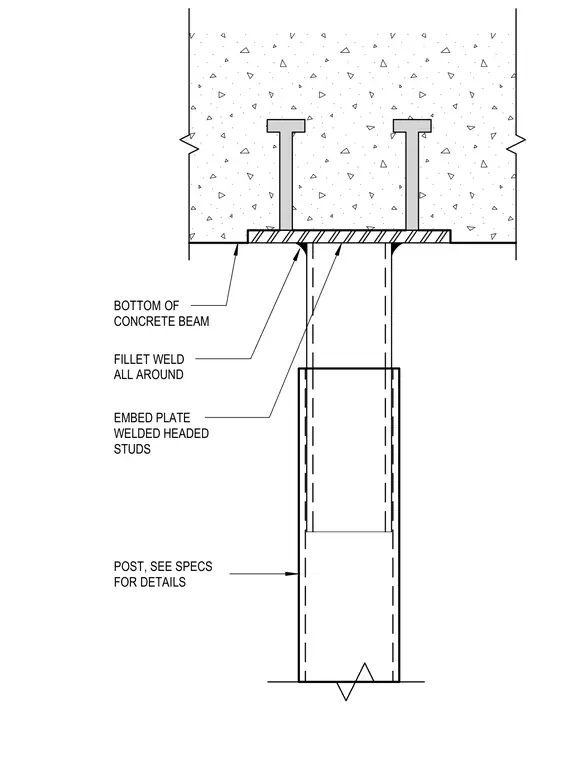

A structural steel post connects to a steel embed plate anchored into the bottom of a concrete beam with welded headed studs. The post is secured to the embed plate with a fillet weld all around. The post sizing and specifications are detailed elsewhere in the project documents.
POST, SEE SPECS FOR DETAILS EMBED PLATE WELDED HEADED STUDS BOTTOM OF CONCRETE BEAM FILLET WELD ALL AROUND
