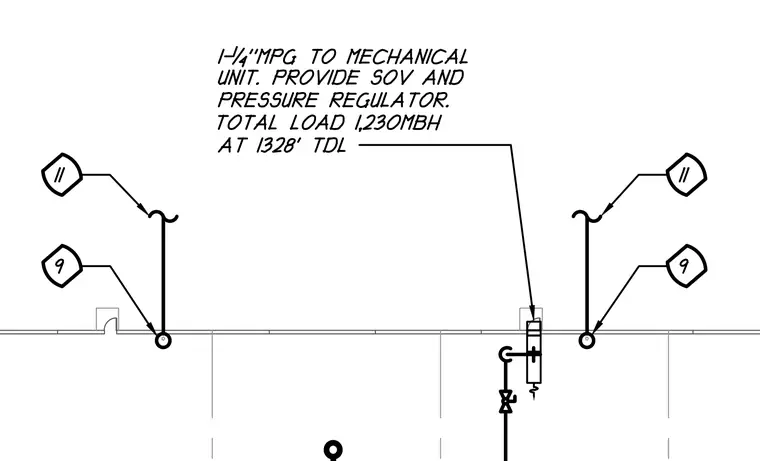

A 1-1/4 inch medium pressure gas line connects to the mechanical unit with a shut-off valve and pressure regulator. The total load is 1,230 MBH at 1,328 feet total developed length. Tagged callouts identify associated piping and equipment locations.
