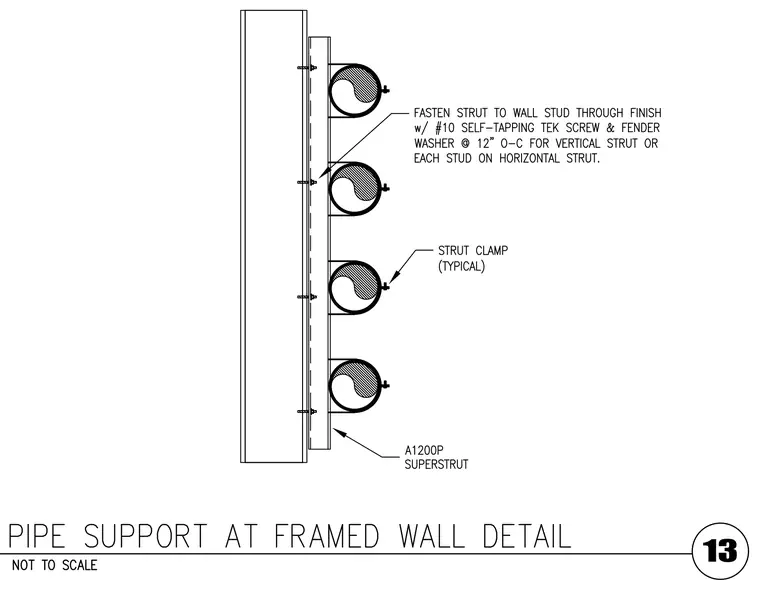

Four horizontal pipes are supported by strut clamps attached to an A1200P superstrut. The superstrut is fastened to the wall stud through the finish with number ten self-tapping tek screws and fender washers at twelve inches on-center for vertical strut or each stud on horizontal strut.
