A twenty-gauge galvanized sheet metal drip pan is suspended from overhead construction using three-eighths-inch diameter Hilli Kwik Bolt TZ anchors with a minimum two-and-a-half-inch embedment and minimum two-inch by twenty-gauge galvanized sheet metal straps spaced at twenty-four inches on center. The drip pan features watertight soldered end caps and slopes toward the drain connection location. A one-inch diameter brass tailpiece for the condensate drain is soldered watertight to the drip pan and connects to a one-inch diameter drain routed to the nearest indirect waste receptor. A moisture sensor is wired to the building automation system as specified.

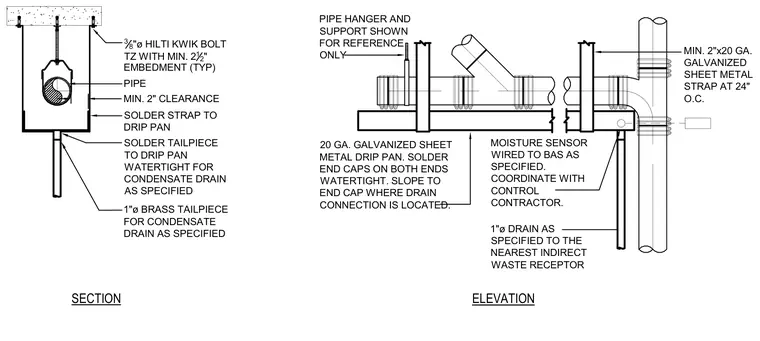

SECTION ELEVATION MOISTURE SENSOR WIRED TO BAS AS SPECIFIED. COORDINATE WITH CONTROL CONTRACTOR. MIN. 2" CLEARANCE 38 "ø HILTI KWIK BOLT TZ WITH MIN. 2 1 2 " EMBEDMENT (TYP) MIN. 2"x20 GA. GALVANIZED SHEET METAL STRAP AT 24" O.C. 1"ø DRAIN AS SPECIFIED TO THE NEAREST INDIRECT WASTE RECEPTOR 20 GA. GALVANIZED SHEET METAL DRIP PAN. SOLDER END CAPS ON BOTH ENDS WATERTIGHT. SLOPE TO END CAP WHERE DRAIN CONNECTION IS LOCATED. 1"ø BRASS TAILPIECE FOR CONDENSATE DRAIN AS SPECIFIED SOLDER STRAP TO DRIP PAN PIPE SOLDER TAILPIECE TO DRIP PAN WATERTIGHT FOR CONDENSATE DRAIN AS SPECIFIED PIPE HANGER AND SUPPORT SHOWN FOR REFERENCE ONLY
